Web Analytics

This page consists of two sections, the first displays general statistics regarding the usage of web browsing over the specified period of time. The second gives an overview of the number of block events broken down into different groups over the specified period of time.

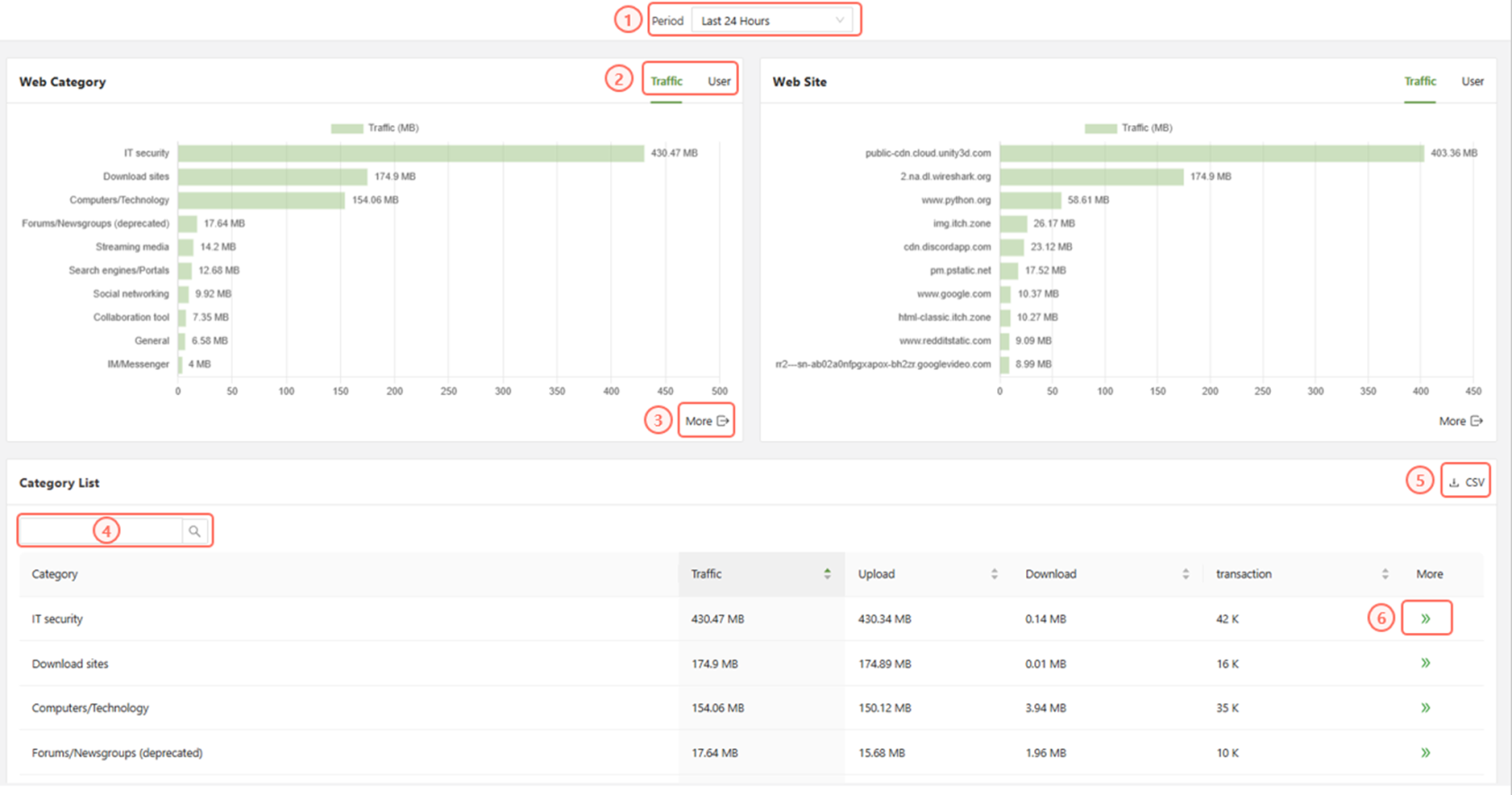

Web Statistics Overview​

This section provides an overview of all WEB traffic for all users over a specified period of time selected using the drop-down menu at the top of the page.


The Statistics page will show Web category and website information, categorized by either Traffic or User. Simply click the item labeled Traffic or User to swap between the two.

  1. Period: Filter the display based on the selected period of time.
  2. Traffic/User: Change the graph to display traffic usage in megabytes or the number of registered users that used the specific service.
  3. More button: allows for a full graph of all Web Categories their usage
  4. Search: Filter the list for a specific category.
  5. CSV: Select the CSV button to download the list.
  6. >> Button: section links to a more detailed view of the Category

The Traffic tab will show traffic by web category or website, by MB, and the User tab will show the web category or website by amount of users using the service over the time period specified.

Individual Web Statistics​

This page consists of the information regarding a selected Web category and its overall traffic usage in the current calendar month.

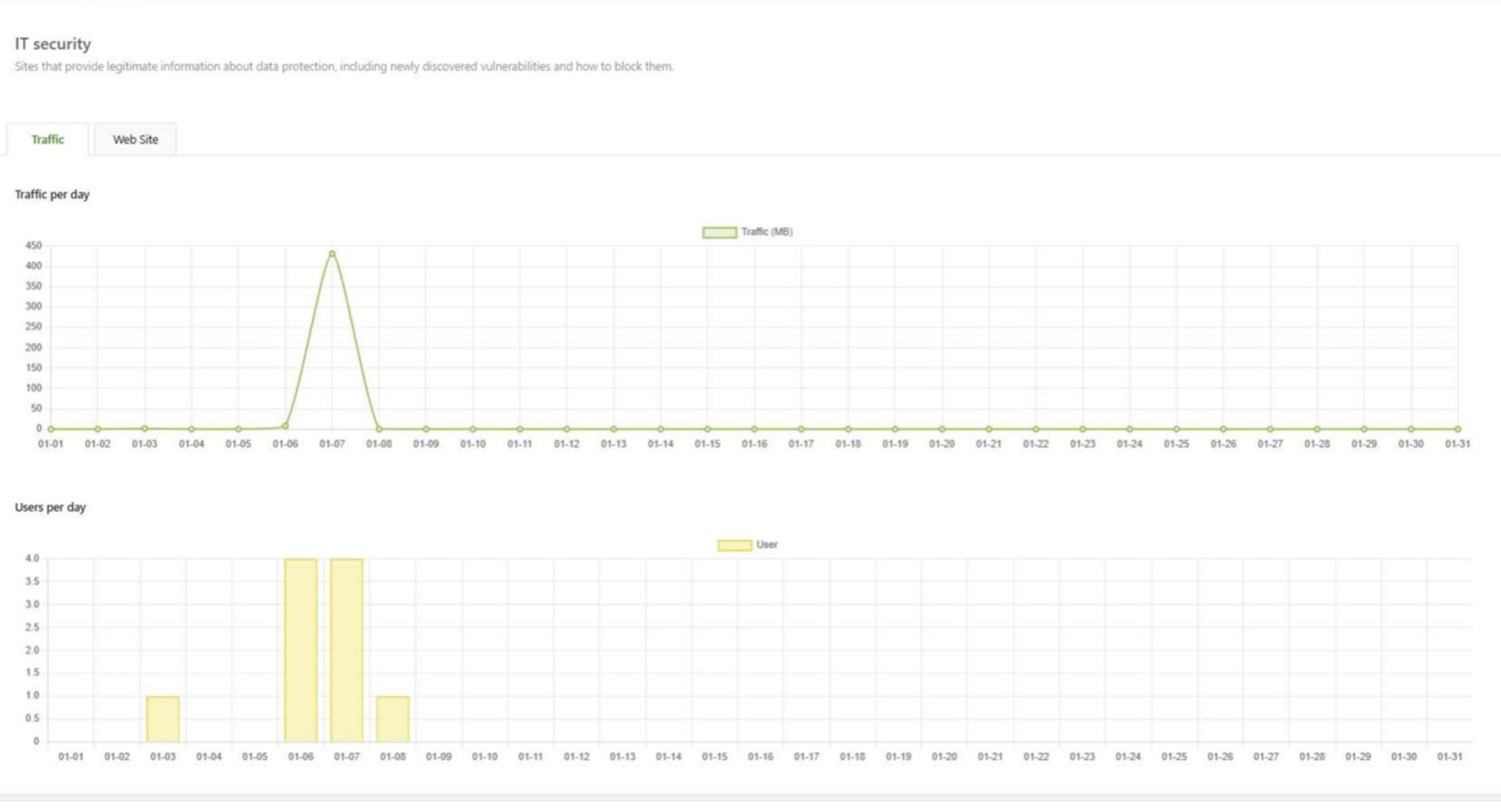

Web Statistics > Traffic​

This tab provides basic information regarding the daily usage of the specified web category for the current calendar month.

  1. Shows the amount of data used each day.
  2. Shows the number of users that have accessed a website within the category.

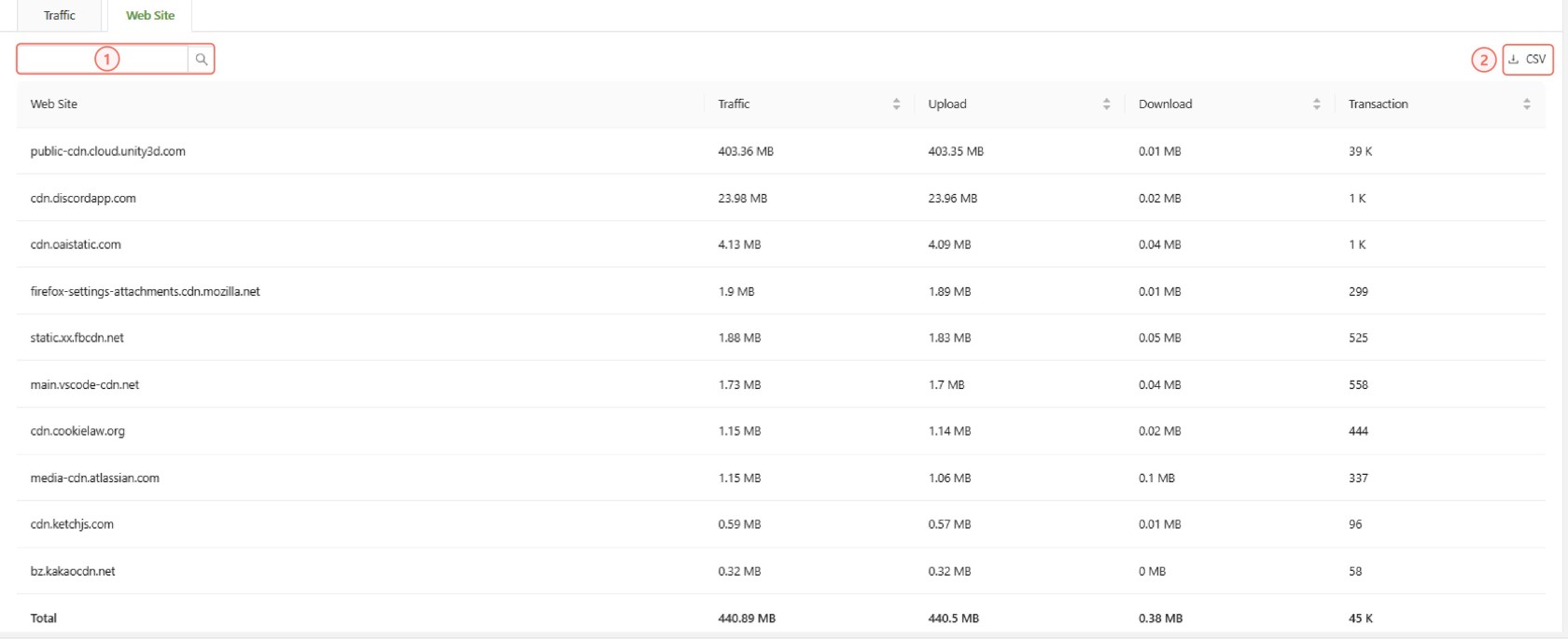

Web Statistics > Website​

This tab shows a list of the specific websites that were visited, providing details regarding the traffic, both upload and download as well as the overall number of transactions made.


  1. Search: Use the input field to filter the websites by name
  2. CSV: Download the list as a CSV

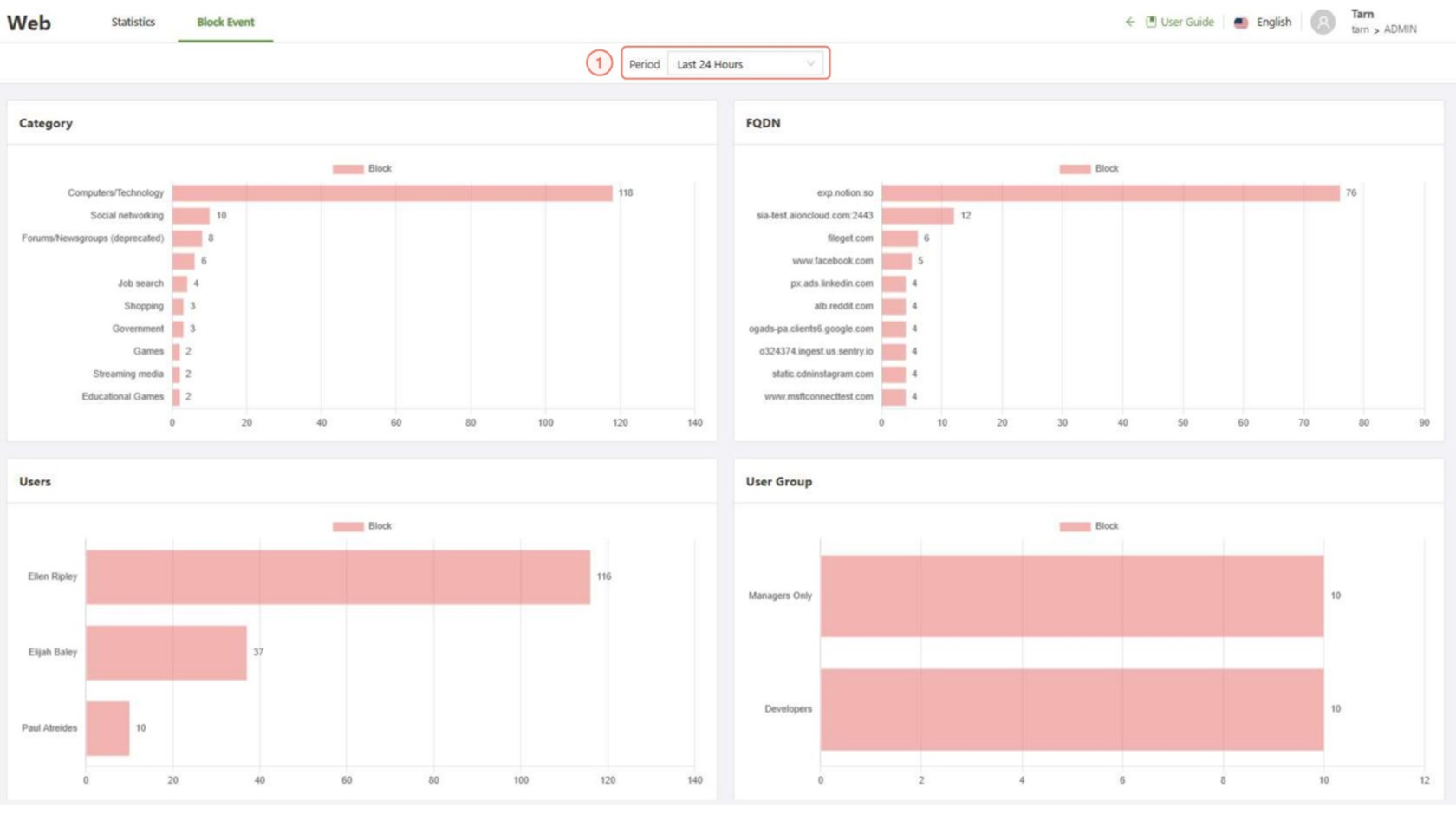

Block Event​

The block event page shows a variety of graphs displaying the top 10 block event count broken into the four main groups, Category, FQDN, User, and User Groups.
